Rubber liner Production Introduction

Rubber Lining

1，Overview

The wear-resistant rubber lining produced by NAIPU has been widely used in non-ferrous and ferrous mines, and other industries, and has gradually replaced the traditional wear-resistant cast steel lining. Rubber lining not only can provide superior impact and wear resistance, but also can help users reduce costs. In this way, it has been recognized and praised by users.

2，Features

1, High abrasion resistance,with service life 1.5 times longer than that of metal ones.

2,Low noise by 8~10dB than that of metal ones

3,Light weight, resulting in installation and disassembling taking only 1/3 of the time needed for installing or removing metal liners.

4, High price/performance ratio

3, Applications

1, Semi-automatic mill and self-grinding machine discharge lifters, discharg outlet lining plate cone liner, FE inner ring liner, etc;

2, Full set liners for the second and third stage ball mills, FE liners, DE liners, etc.

4,Cases

4.1 Results of rubber liners and metal liners applied on 8.5m*4m SAG mill at Tongling Dongguashan Mine are as follows:

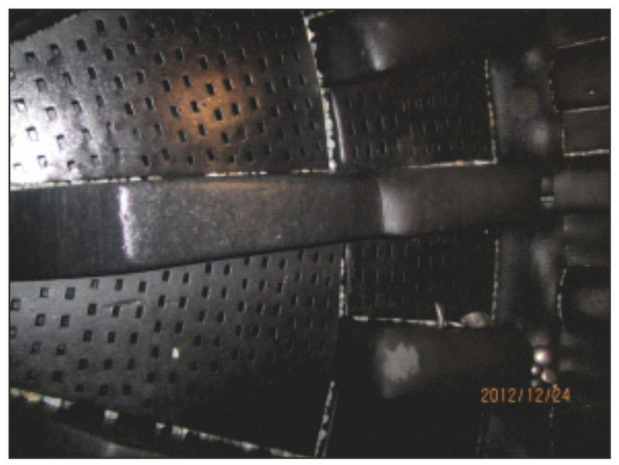

Rubber liners applied on site

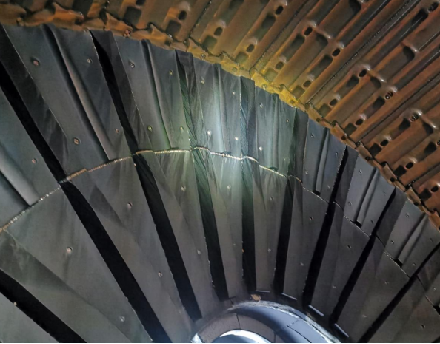

4.2 The rubber end liner of 7.9*13.6m ball mill for SINO iron ore in Australia has a service life of up to 4 years. During the service life, the processing capacity is 32 million tons.
