As a trommel screen manufacturer, we at Naipu Mining are committed to providing top-notch solutions tailored to the unique needs of our clients. Our extensive research and development have led us to create various structures of rubber trommel screens. These innovations ensure optimal performance in ore dressing processes, catering to the diverse requirements of our customers. In this article, we will delve into the types of structures of rubber trommel screens and their applications.

Understanding Rubber Trommel Screen Structures

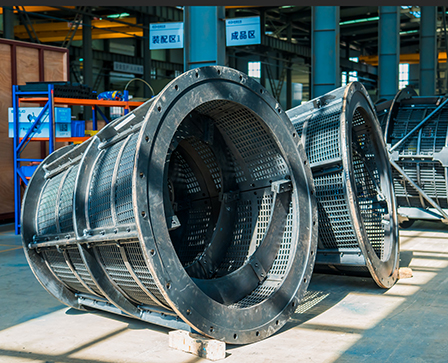

Rubber trommel screens are built around a robust metal frame and are lined with specially designed rubber screen panels. This combination provides enhanced durability and efficiency over traditional materials. As a trommel screen manufacturer, we recognize that different applications necessitate unique structural designs. Consequently, our engineers have developed several types of trommel screens that excel in various environments.

The cylindrical trommel, for instance, is designed for mass classification, coarse particle removal, and scats removal at mill discharge ends. Its structure allows for effective circulation, thereby improving hydrocyclone classification efficiency and extending the service life of pumps. By selecting the right configuration, users can significantly enhance the operational efficiency of their processing plants.

Specialized Applications

Another notable design we offer is the external circulation conical trommel. Like its cylindrical counterpart, this structure primarily serves to enhance classification processes. Its unique conical shape allows for improved separation, ensuring that larger particles and debris are efficiently removed. For clients focused on maximizing throughput while maintaining quality, this trommel structure provides an optimal solution.

Pre-classifying self-returning return trommels represent yet another innovative design by our team. These trommels are particularly advantageous at the discharge ends of grate mills or AG mills. By effectively controlling the feed size in secondary mills, they help meet specific milling technological requirements. This controlled discharge classification plays a crucial role in optimizing overall milling performance, making it a preferred choice among many clients.

Moreover, mass and size classifying trommels serve a dual purpose: they remove broken steel balls and manage feed sizes entering subsequent milling stages. By returning middlings for regrinding, these trommels further enhance process efficiency.

Conclusion

In conclusion, as a dedicated trommel screen manufacturer, Naipu Mining excels in designing rubber trommel screens suited for an array of industrial applications. With our innovative structures, we help clients optimize their ore dressing processes while ensuring durability and efficiency. We invite you to explore our range of products and experience how our rubber trommel screens can benefit your operations. Trust Naipu Mining for reliable, high-quality trommel screen solutions that meet your needs.
